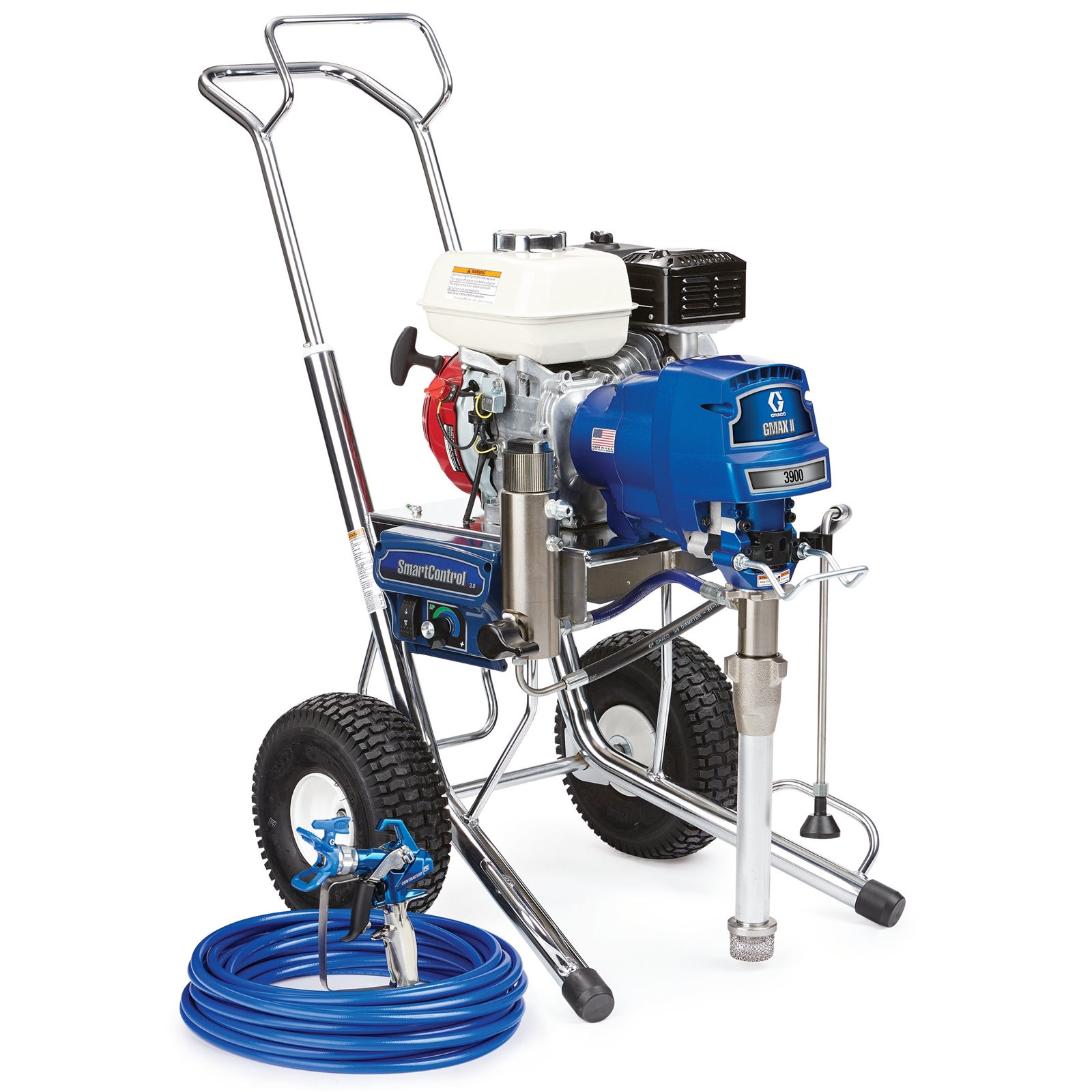

17E827- Graco GMAX II 3900 Standard Series Gas Airless Sprayer, Hi-Boy

Producing 65% more performance than the GMAX 3400, the GMAX II 3900 has the power and flow to handle up to two guns and is ideal for the professional contractor who sprays a wide variety of coatings.


Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 4
Features Endurance Chromex Pump, Honda Engine, Advantage Drive, Easy Out Filter, SmartControl 3.0, Contractor PC Gun
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Hose Inlet Diameter (in) 1/4
Includes Contractor PC Gun, RAC X 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 1.25
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.036
Maximum Tip Size 1 Gun (in) 0.036
Maximum Tip Size 2 Guns (in) 0.023
Maximum Working Pressure (psi) 3300
Number of Guns 2
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (in) 40.8
Overall Length (in) 38.3
Overall Width (in) 22.3
Power Rating (HP) 4
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Pump Type Endurance
Series 3900
Type Airless Sprayer
Weight (lb) 106
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel

17E827- Graco GMAX II 3900 Standard Series Gas Airless Sprayer, Hi-Boy

SKU: 17E827
